[AEWS] #4주차 프로메테우스 실습 (3)

25년도 AWS EKS Hands-on Study 스터디 정리 내용입니다.

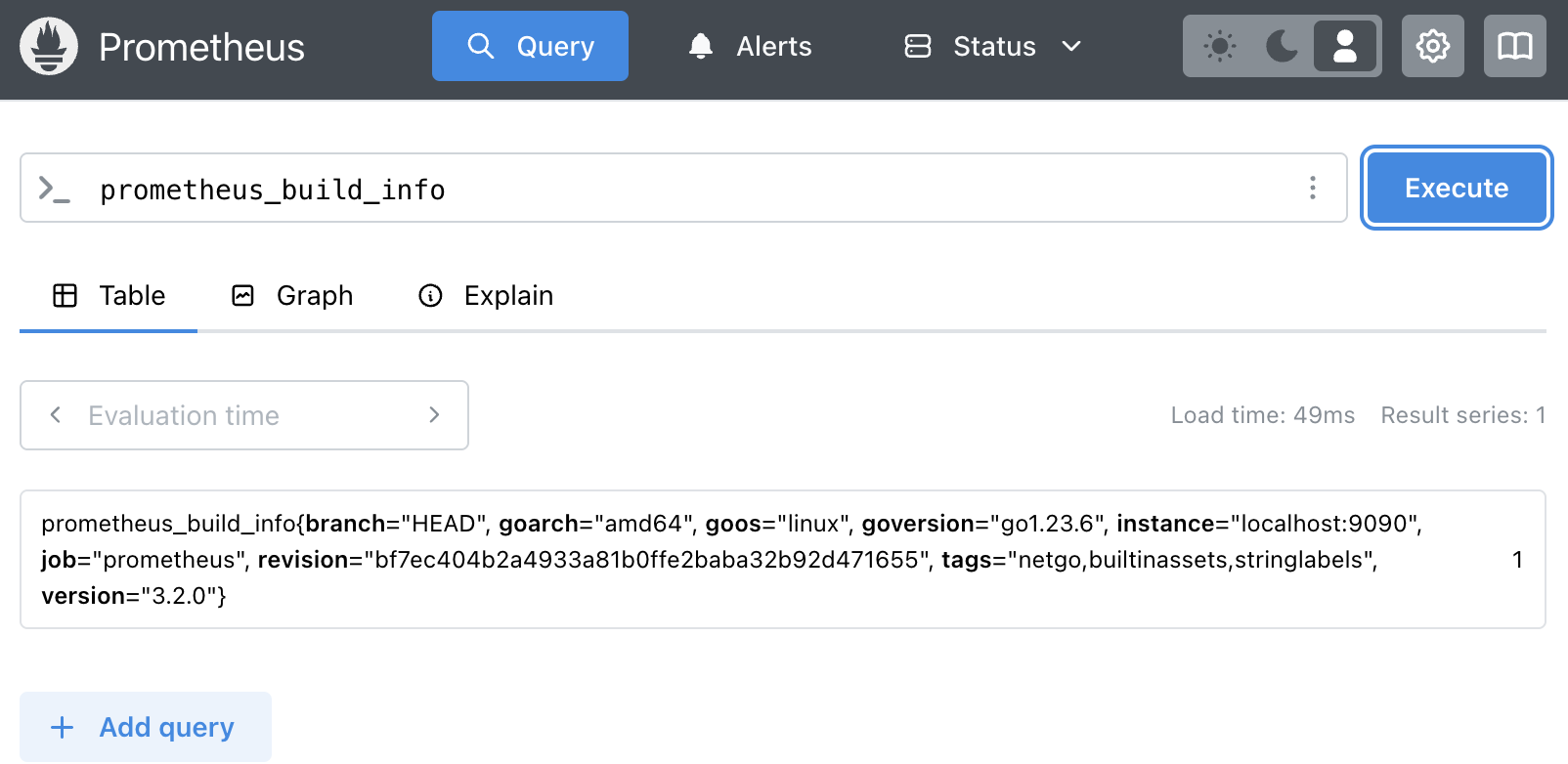

프로메테우스 설치

wget https://github.com/prometheus/prometheus/releases/download/v3.2.0/prometheus-3.2.0.linux-amd64.tar.gz

tar -xvf prometheus-3.2.0.linux-amd64.tar.gz
cd prometheus-3.2.0.linux-amd64

mv prometheus /usr/local/bin/
mv promtool /usr/local/bin/
mkdir -p /etc/prometheus /var/lib/prometheus
mv prometheus.yml /etc/prometheus/

useradd --no-create-home --shell /sbin/nologin prometheus
chown -R prometheus:prometheus /etc/prometheus /var/lib/prometheus
chown prometheus:prometheus /usr/local/bin/prometheus /usr/local/bin/promtool

tee /etc/systemd/system/prometheus.service > /dev/null <<EOF
[Unit]
Description=Prometheus
Wants=network-online.target
After=network-online.target

[Service]
User=prometheus
Group=prometheus
Type=simple
ExecStart=/usr/local/bin/prometheus \
  --config.file=/etc/prometheus/prometheus.yml \
  --storage.tsdb.path=/var/lib/prometheus \
  --web.listen-address=0.0.0.0:9090

[Install]
WantedBy=multi-user.target
EOF





노드 익스포터 설치

wget https://github.com/prometheus/node_exporter/releases/download/v1.9.0/node_exporter-1.9.0.linux-amd64.tar.gz
tar xvfz node_exporter-1.9.0.linux-amd64.tar.gz
cd node_exporter-1.9.0.linux-amd64
cp node_exporter /usr/local/bin/


groupadd -f node_exporter
useradd -g node_exporter --no-create-home --shell /sbin/nologin node_exporter
chown node_exporter:node_exporter /usr/local/bin/node_exporter

tee /etc/systemd/system/node_exporter.service > /dev/null <<EOF
[Unit]
Description=Node Exporter
Documentation=https://prometheus.io/docs/guides/node-exporter/
Wants=network-online.target
After=network-online.target

[Service]
User=node_exporter
Group=node_exporter
Type=simple
Restart=on-failure
ExecStart=/usr/local/bin/node_exporter \
  --web.listen-address=:9200

[Install]
WantedBy=multi-user.target
EOF

systemctl daemon-reload
systemctl enable --now node_exporter
systemctl status node_exporter

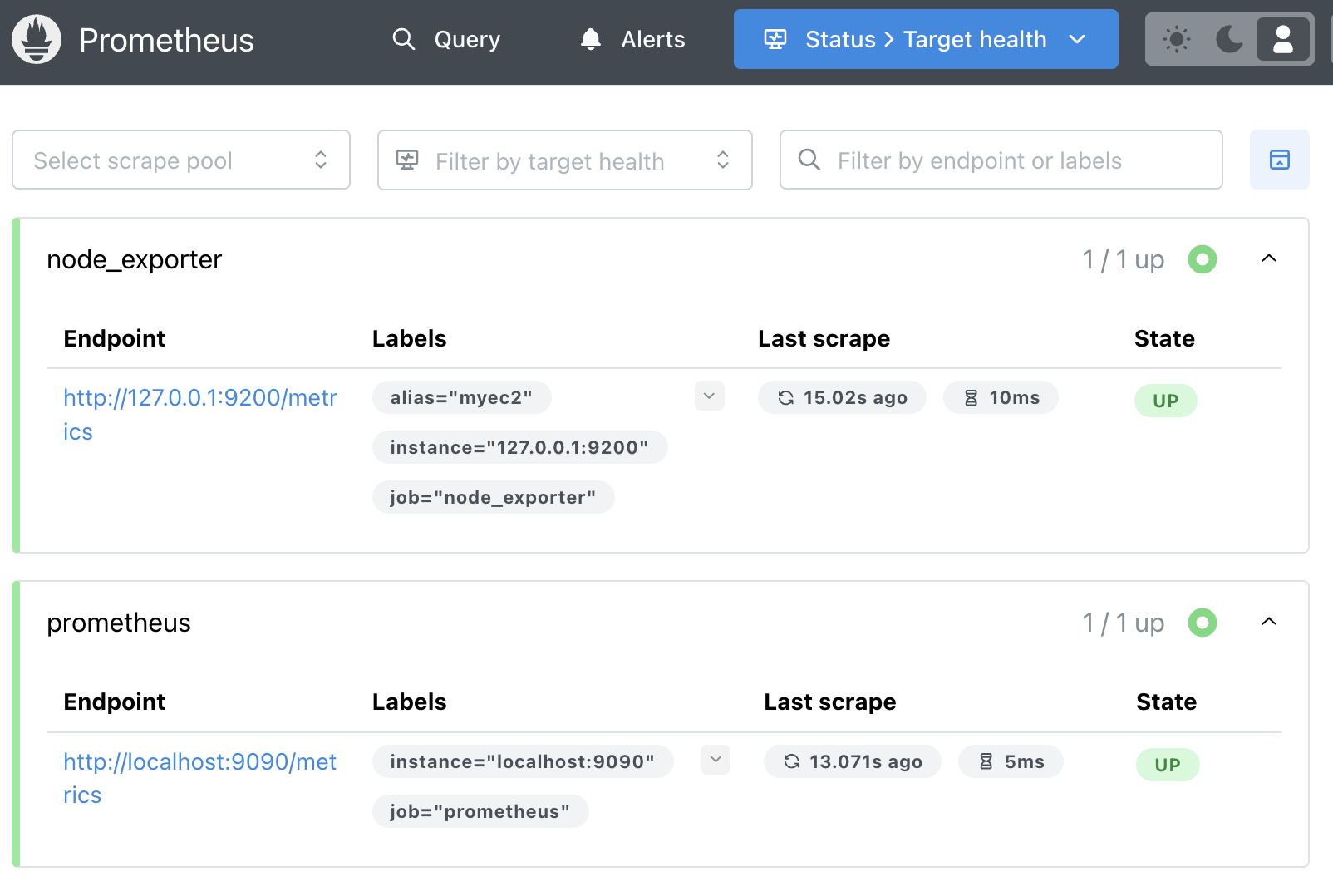

# 프로메테우스 야믈 파일 수정
cat << EOF >> /etc/prometheus/prometheus.yml

  - job_name: 'node_exporter'
    static_configs:
      - targets: ["127.0.0.1:9200"]
        labels:
          alias: 'myec2'
EOF



프로메테우스 스택 설치

helm repo add prometheus-community https://prometheus-community.github.io/helm-charts

cat <<EOT > monitor-values.yaml
prometheus:
  prometheusSpec:
    scrapeInterval: "15s"
    evaluationInterval: "15s"
    podMonitorSelectorNilUsesHelmValues: false
    serviceMonitorSelectorNilUsesHelmValues: false
    retention: 5d
    retentionSize: "10GiB"
    storageSpec:
      volumeClaimTemplate:
        spec:
          storageClassName: gp3
          accessModes: ["ReadWriteOnce"]
          resources:
            requests:
              storage: 30Gi

  ingress:
    enabled: true
    ingressClassName: alb
    hosts:
      - prometheus.$MyDomain
    paths:
      - /*
    annotations:
      alb.ingress.kubernetes.io/scheme: internet-facing
      alb.ingress.kubernetes.io/target-type: ip
      alb.ingress.kubernetes.io/listen-ports: '[{"HTTPS":443}, {"HTTP":80}]'
      alb.ingress.kubernetes.io/certificate-arn: $CERT_ARN
      alb.ingress.kubernetes.io/success-codes: 200-399
      alb.ingress.kubernetes.io/load-balancer-name: myeks-ingress-alb
      alb.ingress.kubernetes.io/group.name: study
      alb.ingress.kubernetes.io/ssl-redirect: '443'

grafana:
  defaultDashboardsTimezone: Asia/Seoul
  adminPassword: prom-operator

  ingress:
    enabled: true
    ingressClassName: alb
    hosts:
      - grafana.$MyDomain
    paths:
      - /*
    annotations:
      alb.ingress.kubernetes.io/scheme: internet-facing
      alb.ingress.kubernetes.io/target-type: ip
      alb.ingress.kubernetes.io/listen-ports: '[{"HTTPS":443}, {"HTTP":80}]'
      alb.ingress.kubernetes.io/certificate-arn: $CERT_ARN
      alb.ingress.kubernetes.io/success-codes: 200-399
      alb.ingress.kubernetes.io/load-balancer-name: myeks-ingress-alb
      alb.ingress.kubernetes.io/group.name: study
      alb.ingress.kubernetes.io/ssl-redirect: '443'

  persistence:
    enabled: true
    type: sts
    storageClassName: "gp3"
    accessModes:
      - ReadWriteOnce
    size: 20Gi

alertmanager:
  enabled: false
defaultRules:
  create: false
kubeControllerManager:
  enabled: false
kubeEtcd:
  enabled: false
kubeScheduler:
  enabled: false
prometheus-windows-exporter:
  prometheus:
    monitor:
      enabled: false
EOT
cat monitor-values.yaml

helm install kube-prometheus-stack prometheus-community/kube-prometheus-stack --version 69.3.1 \
-f monitor-values.yaml --create-namespace --namespace monitoring

helm list -n monitoring
NAME                 	NAMESPACE  	REVISION	UPDATED                               	STATUS  	CHART                       	APP VERSION
kube-prometheus-stack	monitoring	1       	2025-03-01 22:04:29 +0900 KST	deployed	kube-prometheus-stack-69.3.1	v0.80.0

# 리소스
NAME                                                            READY   AGE
statefulset.apps/kube-prometheus-stack-grafana                 0/1     35s
statefulset.apps/prometheus-kube-prometheus-stack-prometheus   1/1     30s

NAME                                                            DESIRED   CURRENT   READY   UP-TO-DATE   AVAILABLE   NODE SELECTOR            AGE
daemonset.apps/kube-prometheus-stack-prometheus-node-exporter   3         3         3       3            3           kubernetes.io/os=linux   35s

NAME                                                       READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/kube-prometheus-stack-kube-state-metrics   1/1     1            1           35s
deployment.apps/kube-prometheus-stack-operator             1/1     1            1           35s

NAME                                                           READY   STATUS            RESTARTS   AGE
pod/kube-prometheus-stack-grafana-0                            0/3     PodInitializing   0          35s
pod/kube-prometheus-stack-kube-state-metrics-*****            1/1     Running           0          35s
pod/kube-prometheus-stack-operator-*****                      1/1     Running           0          35s
pod/kube-prometheus-stack-prometheus-node-exporter-*****      1/1     Running           0          35s
pod/prometheus-kube-prometheus-stack-prometheus-0              2/2     Running           0          30s

# 서비스
NAME                                                     TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)             AGE
service/kube-prometheus-stack-grafana                    ClusterIP   10.100.***.***   <none>        80/TCP              35s
service/kube-prometheus-stack-prometheus                 ClusterIP   10.100.***.***   <none>        9090/TCP,8080/TCP   35s

# 인그레스
NAME                                             CLASS   HOSTS                            ADDRESS                                                         PORTS   AGE
ingress.networking.k8s.io/kube-prometheus-stack-grafana      alb     *****.$MyDomain      myeks-ingress-alb-****.ap-northeast-2.elb.amazonaws.com   80      35s
ingress.networking.k8s.io/kube-prometheus-stack-prometheus   alb     *****.$MyDomain      myeks-ingress-alb-****.ap-northeast-2.elb.amazonaws.com   80      35s

# pvc
NAME                                                                 STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS   AGE
persistentvolumeclaim/prometheus-kube-prometheus-stack-prometheus-db-prometheus-kube-prometheus-stack-prometheus-0   Bound    pvc-**********   30Gi       RWO            gp3            30s
persistentvolumeclaim/storage-kube-prometheus-stack-grafana-0                                              Bound    pvc-**********   20Gi       RWO            gp3            35s

# pv
NAME                                      CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS   CLAIM                                                                                                     STORAGECLASS   AGE
persistentvolume/pvc-**********            20Gi       RWO            Delete           Bound    monitoring/storage-kube-prometheus-stack-grafana-0                                                        gp3            33s
persistentvolume/pvc-**********            30Gi       RWO            Delete           Bound    monitoring/prometheus-kube-prometheus-stack-prometheus-db-prometheus-kube-prometheus-stack-prometheus-0   gp3            27s

# 프로메테우스 서비스 목록
NAME                                                                VERSION   DESIRED   READY   RECONCILED   AVAILABLE   AGE
prometheus.monitoring.coreos.com/kube-prometheus-stack-prometheus   v3.1.0    1         1       True         True        79s

NAME                                                                                  AGE
servicemonitor.monitoring.coreos.com/kube-prometheus-stack-apiserver                  79s
servicemonitor.monitoring.coreos.com/kube-prometheus-stack-coredns                    79s
servicemonitor.monitoring.coreos.com/kube-prometheus-stack-grafana                    79s
servicemonitor.monitoring.coreos.com/kube-prometheus-stack-kube-state-metrics         79s
servicemonitor.monitoring.coreos.com/kube-prometheus-stack-kubelet                    79s

# crd
alertmanagerconfigs.monitoring.coreos.com    2025-03-01T12:47:40Z
alertmanagers.monitoring.coreos.com          2025-03-01T12:47:40Z
podmonitors.monitoring.coreos.com            2025-03-01T12:47:41Z
prometheuses.monitoring.coreos.com           2025-03-01T12:47:42Z
servicemonitors.monitoring.coreos.com        2025-03-01T12:47:43Z
thanosrulers.monitoring.coreos.com           2025-03-01T12:47:44Z

# pv 사용량
 PV NAME                                   PVC NAME                                                                                      NAMESPACE   NODE NAME                                         POD NAME                                       VOLUME MOUNT NAME                               SIZE  USED   AVAILABLE  %USED  IUSED  IFREE     %IUSED
 pvc-**********  prometheus-kube-prometheus-stack-prometheus-db-prometheus-kube-prometheus-stack-prometheus-0  monitoring  ip-**********.ap-northeast-2.compute.internal  prometheus-kube-prometheus-stack-prometheus-0  prometheus-kube-prometheus-stack-prometheus-db  29Gi  250Mi  29Gi       0.82   9      15728631  0.00
 pvc-**********  storage-kube-prometheus-stack-grafana-0

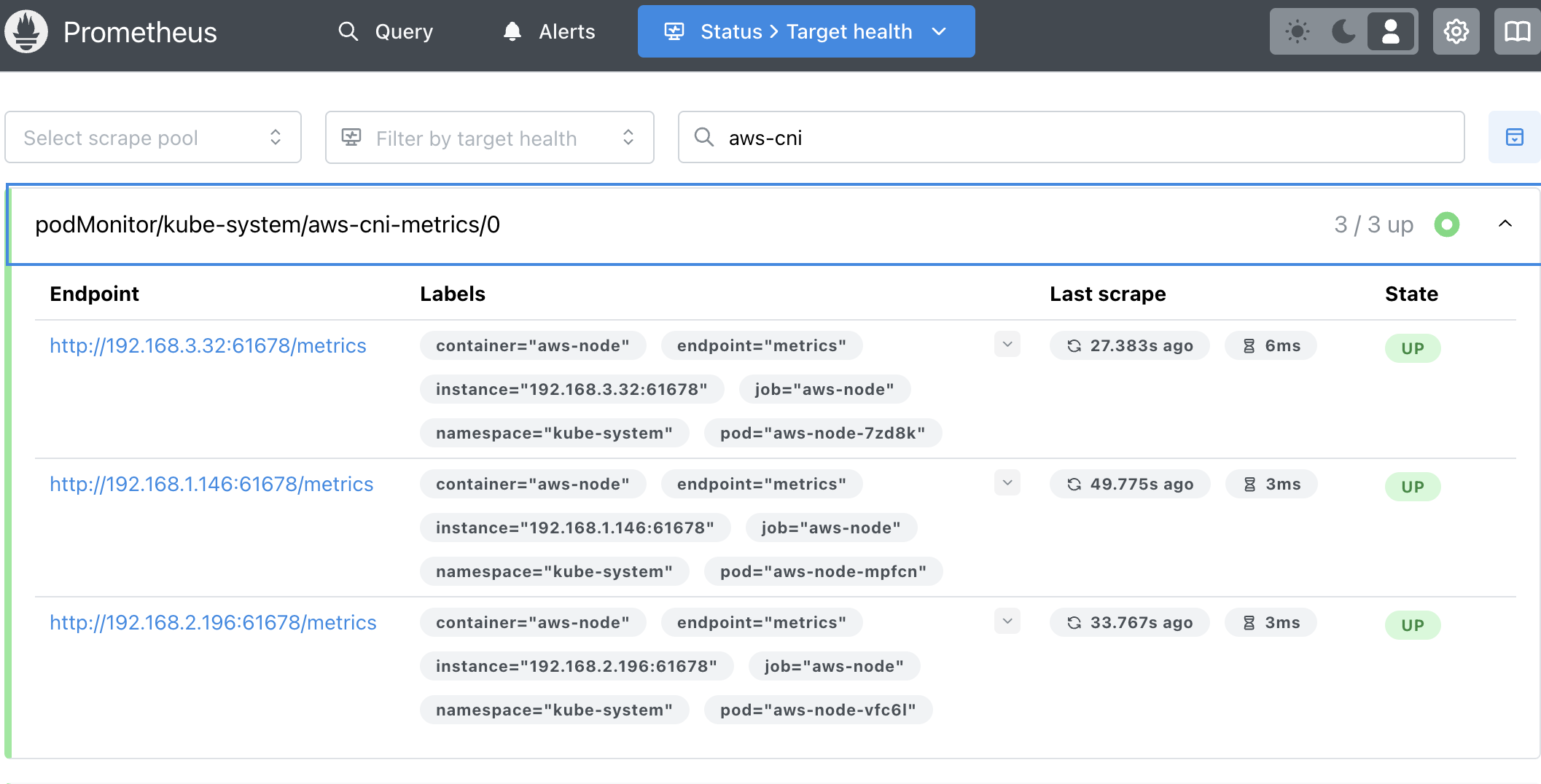

파드 모니터

kubectl get podmonitor -n kube-system
NAME              AGE
aws-cni-metrics   113s

kubectl get podmonitor -n kube-system aws-cni-metrics -o yaml | kubectl neat
apiVersion: monitoring.coreos.com/v1
kind: PodMonitor
metadata:
  name: aws-cni-metrics
  namespace: kube-system
spec:
  jobLabel: k8s-app
  namespaceSelector:
    matchNames:
    - kube-system
  podMetricsEndpoints:
  - interval: 30s
    path: /metrics
    port: metrics
  selector:
    matchLabels:
      k8s-app: aws-node

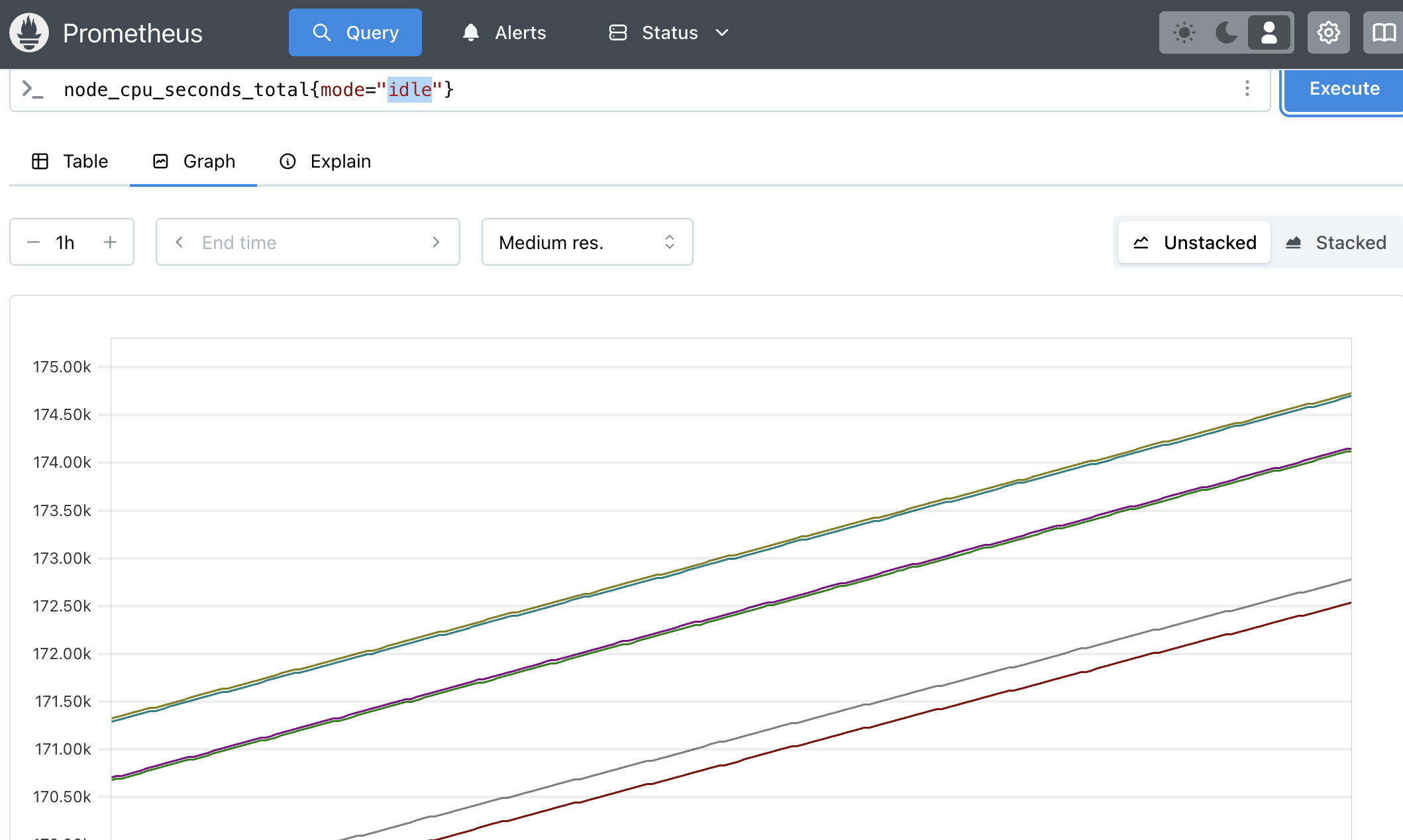

그래프 확인





그라파나 대시보드

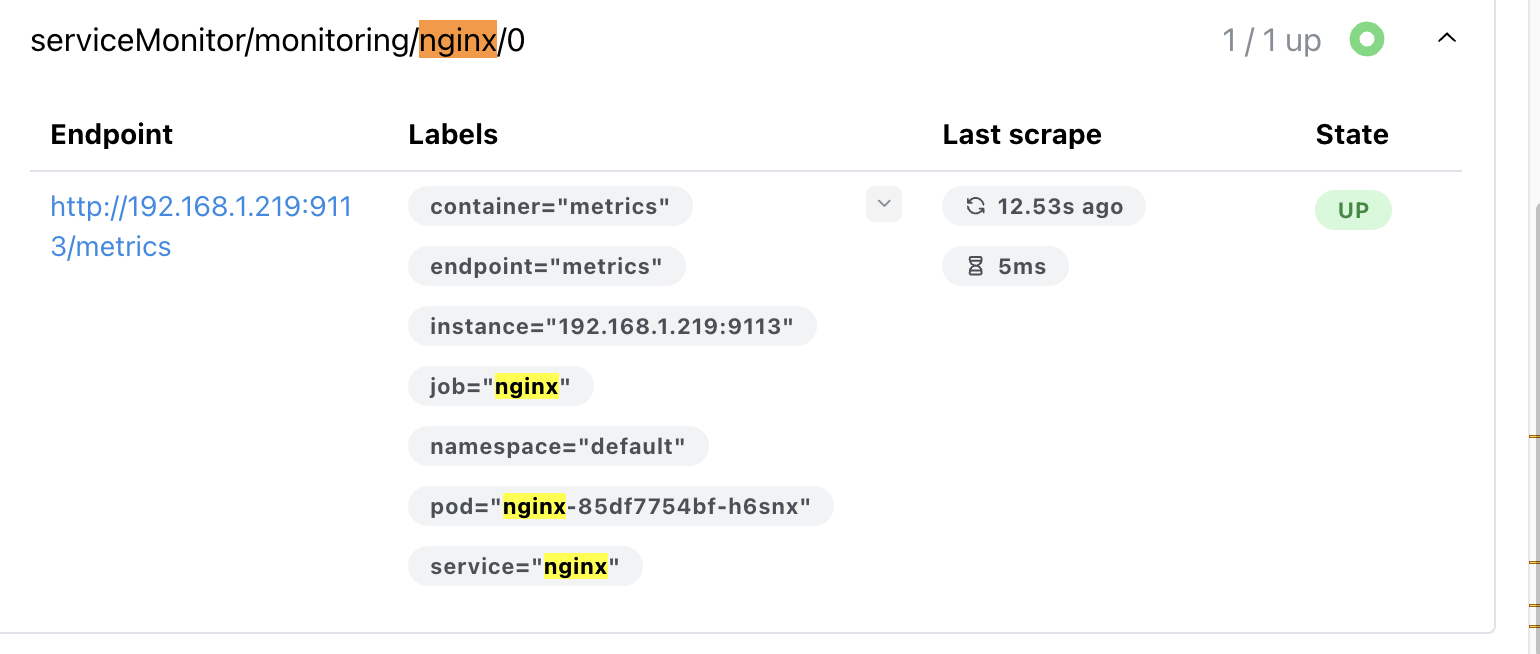

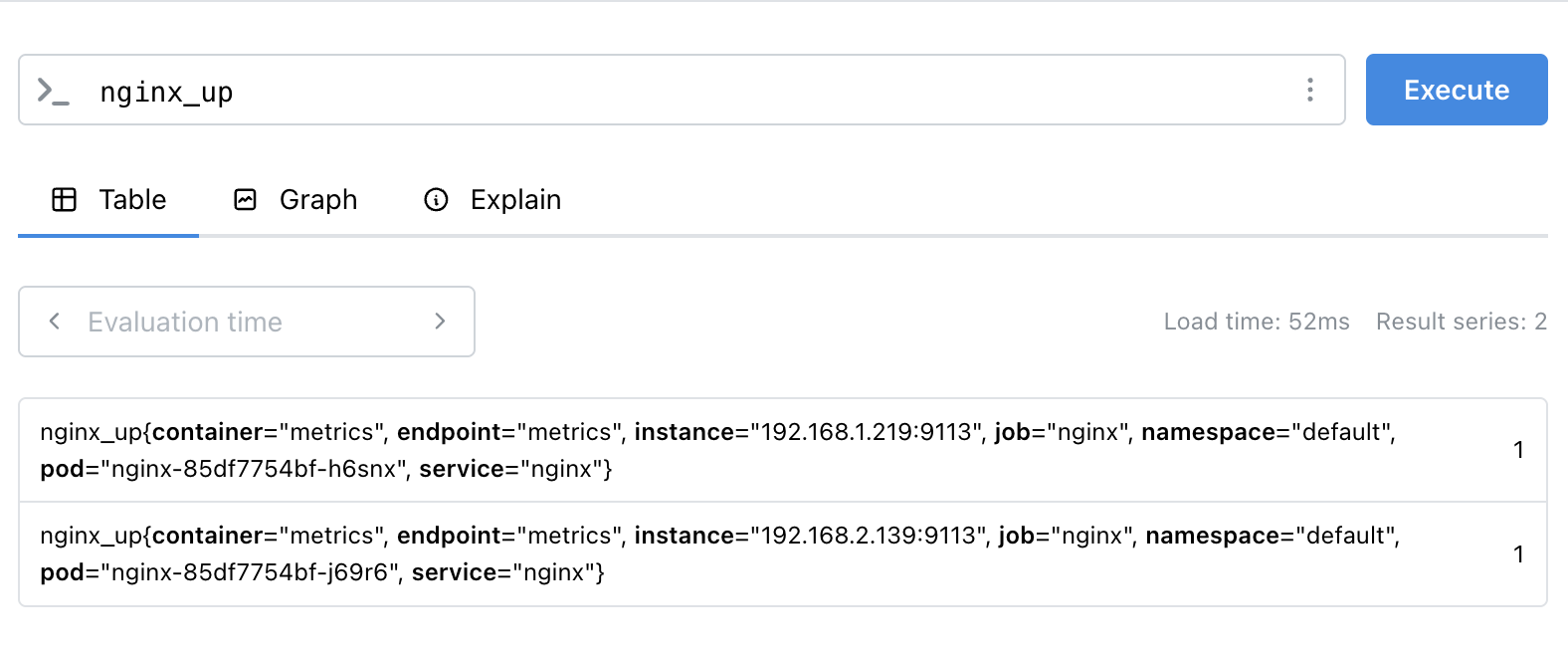

nginx 웹 서버 추가

kubectl get servicemonitor -n monitoring nginx -o yaml | kubectl neat
apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  annotations:
    meta.helm.sh/release-name: nginx
    meta.helm.sh/release-namespace: default
  labels:
    app.kubernetes.io/instance: nginx
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/name: nginx
    app.kubernetes.io/version: 1.27.4
    helm.sh/chart: nginx-19.0.0
  name: nginx
  namespace: monitoring
spec:
  endpoints:
  - interval: 10s
    path: /metrics
    port: metrics
  jobLabel: ""
  namespaceSelector:
    matchNames:
    - default
  selector:
    matchLabels:
      app.kubernetes.io/instance: nginx
      app.kubernetes.io/name: nginx







PromQL(Prometheus Query Language)

PromQL(Prometheus Query Language)은 프로메테우스에서 메트릭 데이터를 조회하고 분석하기 위한 쿼리 언어로, 프로메테우스에서 수집된 데이터를 활용하여 메트릭 조회하고 필터링, 집계 등을 수행하여 다양하게 활용할 수 있다.



프로메테우스에서 데이터를 저장하는 방식은 시계열 데이터(time-series data) 라고 한다. 이는 데이터를 시간(time)과 값(value) 형태로 저장한다.

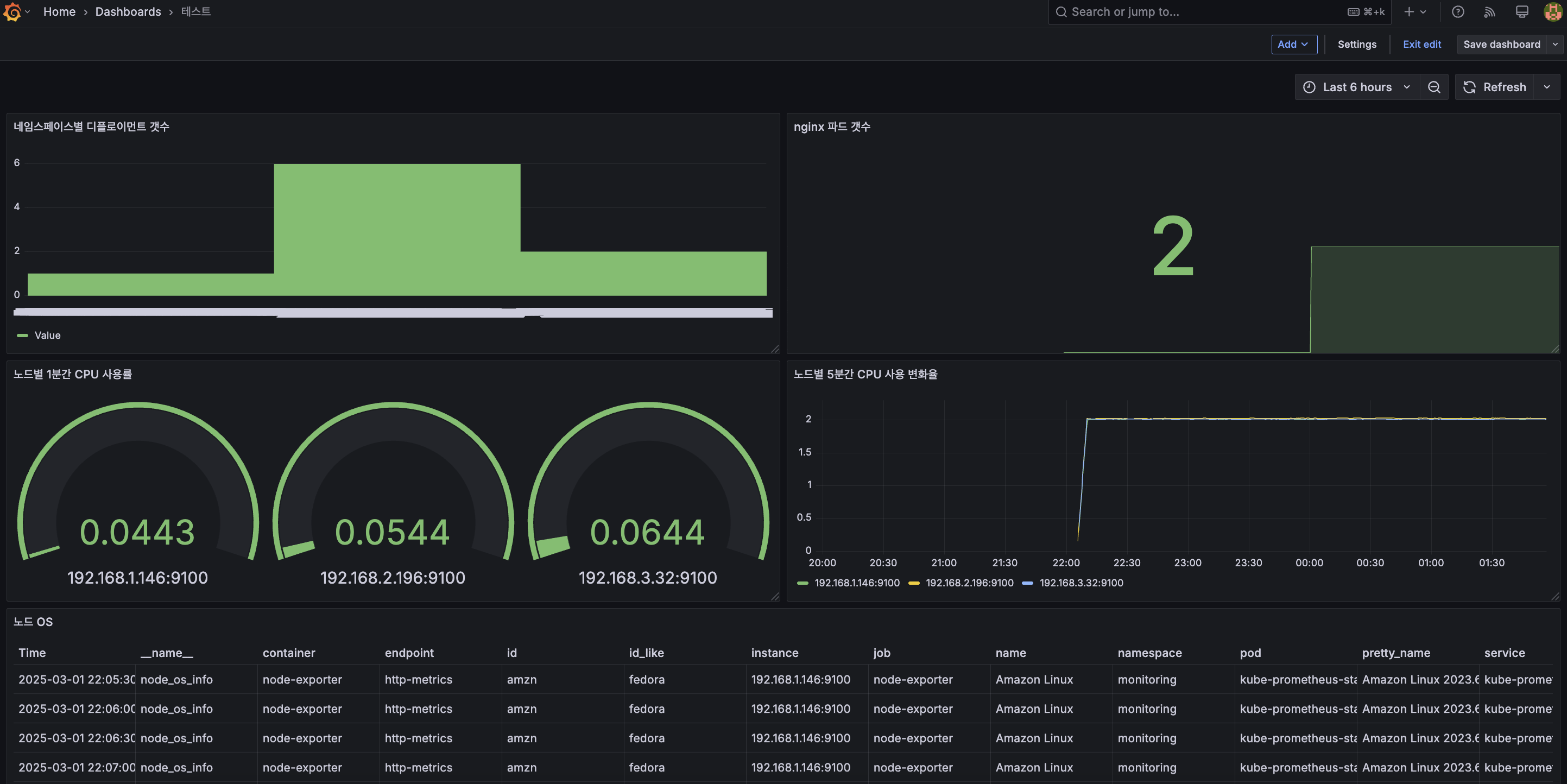

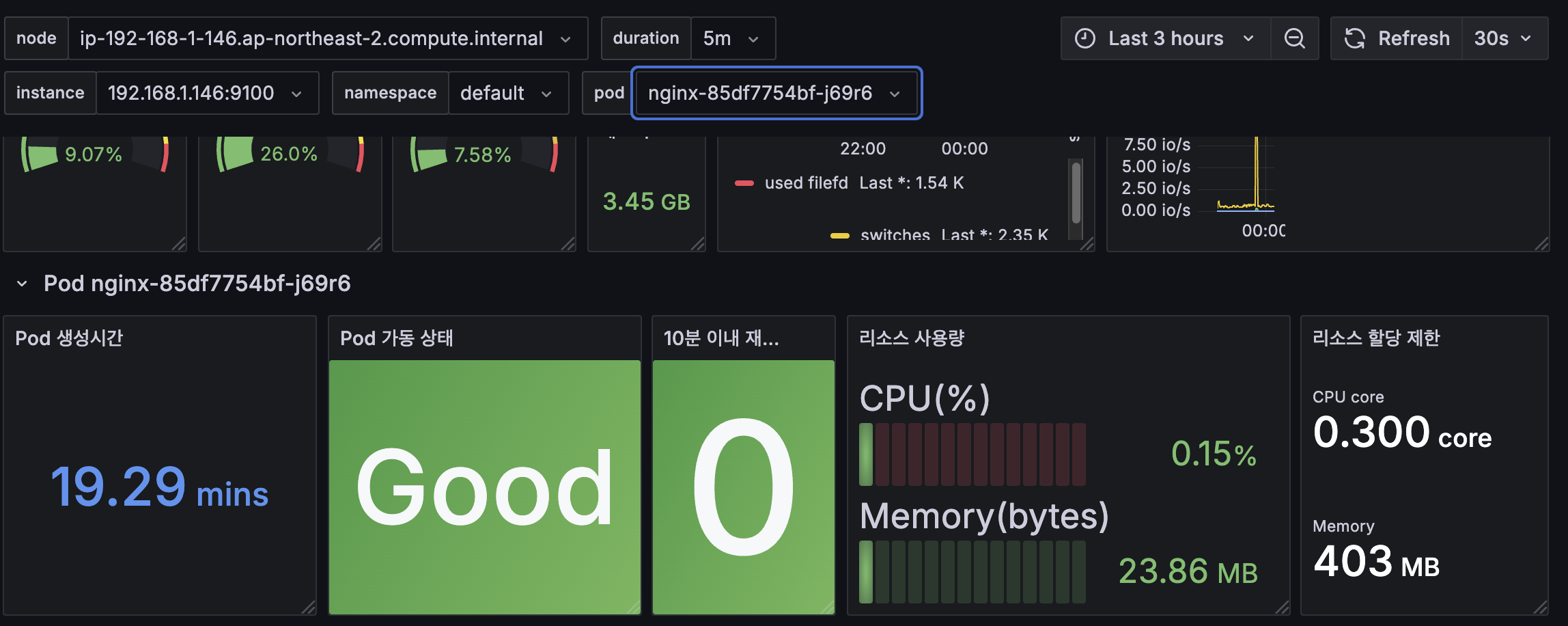

커스텀 대시보드

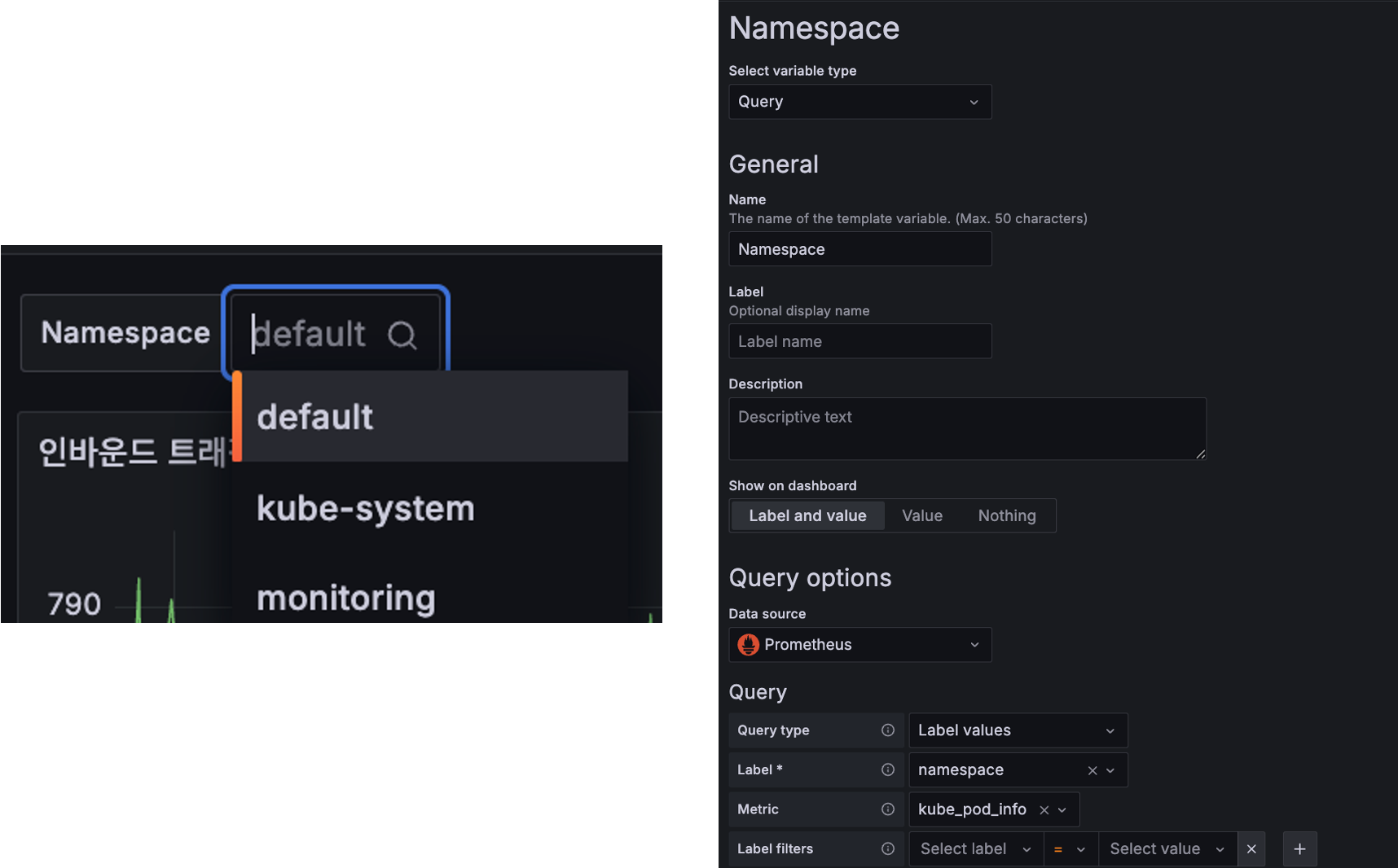

variables 추가하여 대시보드 필터링 동작 확인







# 인바운드 트래픽 (Time series)
sum(rate(container_network_receive_bytes_total{namespace=~"$Namespace"}[5m])) by (namespace)

# 아웃바운드 트래픽 (Time series)
sum(rate(container_network_transmit_bytes_total{namespace=~"$Namespace"}[5m])) by (namespace)

# 레플리카셋 개수 (Stat)
count(kube_replicaset_status_ready_replicas{namespace=~"$Namespace"}) by (namespace)

# 실행중인 파드 갯수 (Stat)
count(kube_pod_info{namespace=~"$Namespace"}) by (namespace)

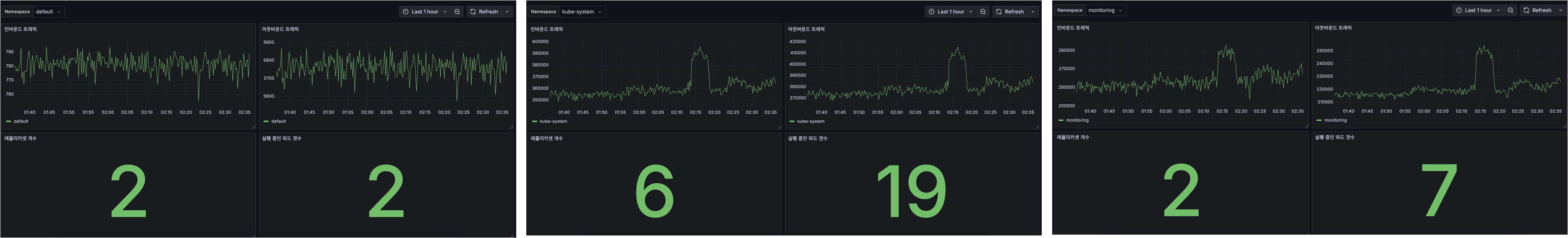

네임스페이스별로 인바운드/아웃바운드 트래픽, 레플리카셋 개수, 파드 갯수를 필터링하였다.

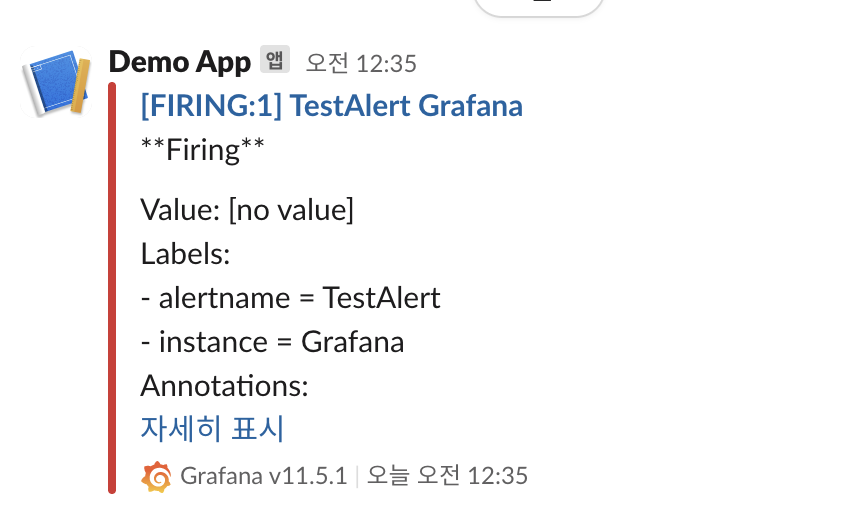

알럿
